Pan-Tilt-Zoom Camera
Astra P1
Professional Precision. Effortless Motion.
The Astra P1 PTZ combines a high-performance UHD 4K60 imaging system and 30x optical zoom with intelligent face-detection AE and AI auto-tracking. With support for NDI®|HX3 and diverse I/O interfaces, it is a comprehensive professional solution for churches, halls, various live events, and beyond.
UHD 4K60
Face Detection AE
AI Auto Tracking
30x Optical Zoom
Large Sensor
NDI® | HX3 Support
Ease of Use
5-Year Warranty
1080P
Traditional PTZ Camera
UHD 4K60
Astra P1 PTZ Camera
UHD 4K60
Cinema Clarity.
Shine in Shadows.
Live venues aren't always well lit — halls, auditoriums, and churches often present challenging and complex lighting environments. The Astra P1's 1/1.8” sensor increases per-pixel light intake to deliver crisp, noise-free 4K footage.
Church Live Streaming
Hall & Auditorium
Live Production

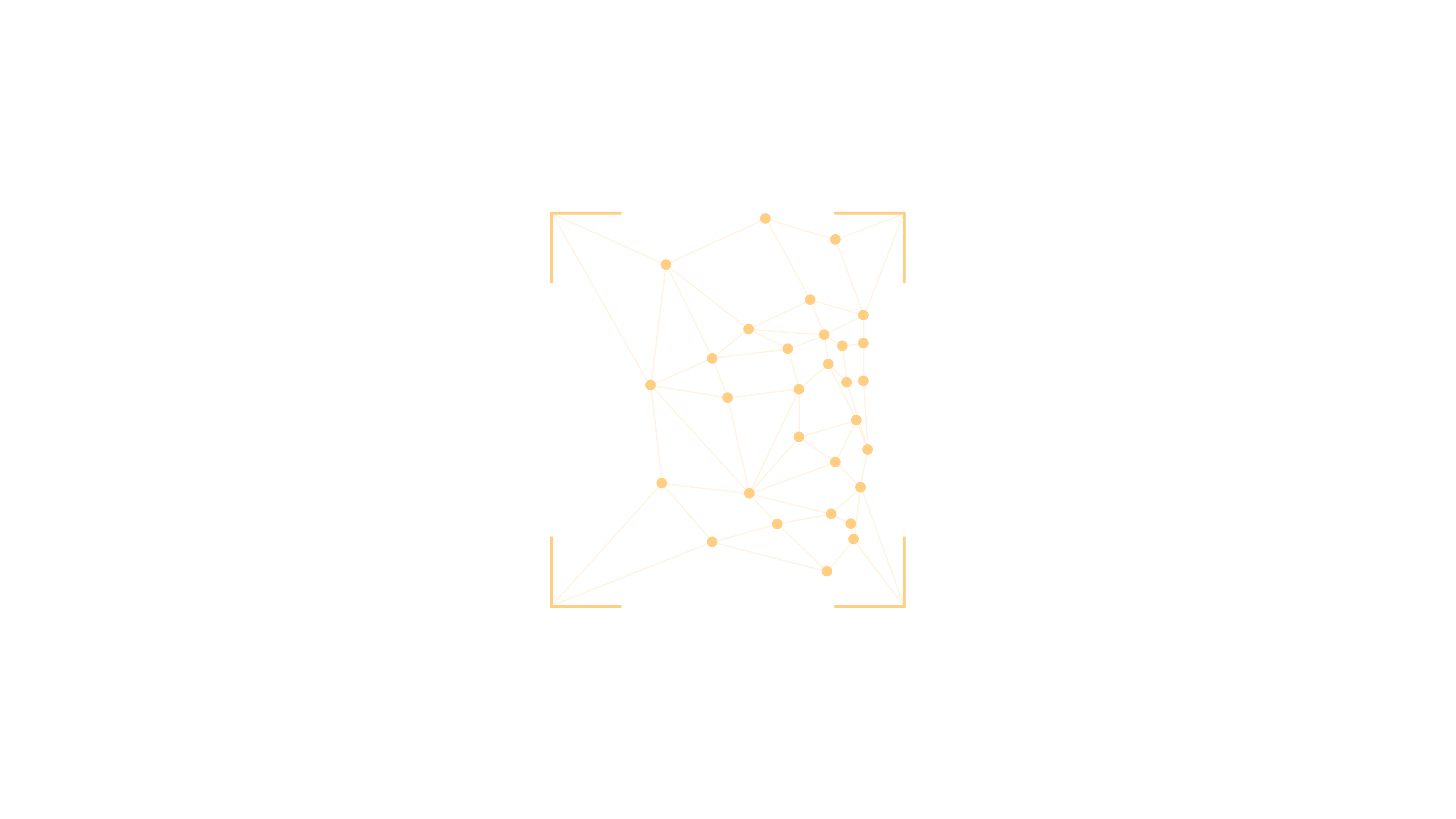

Face Detection AE
Exposure That Stays With You
The light shifts, but the target stays bright. The Astra P1 intelligently tracks the performer and optimizes exposure in real-time. In low-light settings, auto exposure simplifies your team's workflow. At least it’s one less thing for you to worry about with the Astra P1.
Face Detection AE
OFF
Face Detection AE
ON

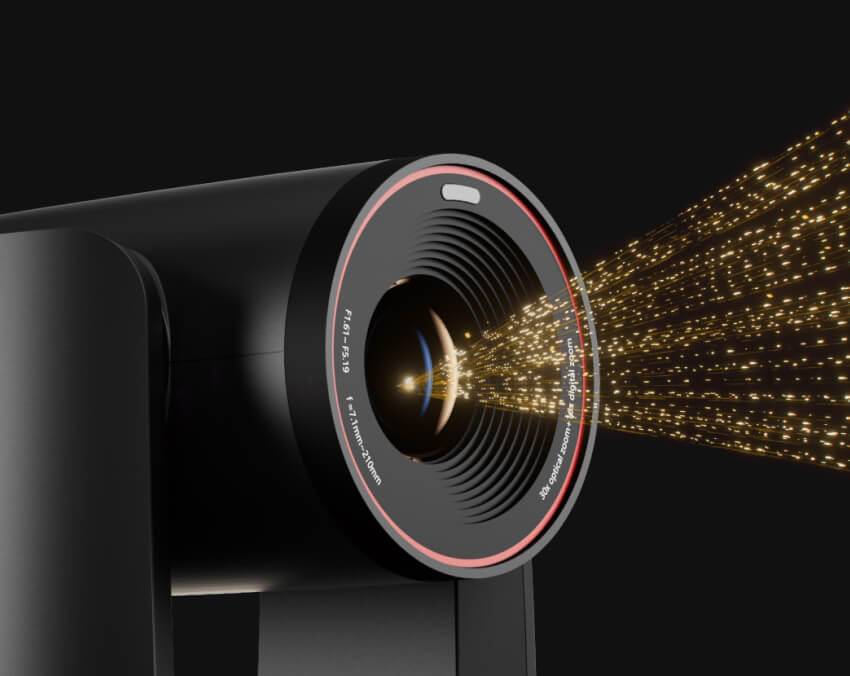

30x Optical Zoom
All in 4K Detail
Go from a wide shot to a close-up with clarity in every pixel. Powered by a 30x optical lens with an aperture up to f/1.6, the Astra P1 gathers impressive light even when zoomed to the max. Combined with 16x digital zoom and 0.1° preset accuracy, it switches between long-shot and extreme close-up presets with fluid motion.
Up to
30x
optical
Effective Pixels
8.42
megapixels
Image Sensor
1/1.8″
CMOS
1x
10x
20x
30x
AI Auto Tracking
Locks on the Presenter.
Tracks Every Move.
Presenter Tracking: The Astra P1 uses human-based logic to follow the presenter, analyzing posture and motion to distinguish them from the background. In crowded environments or complex setups, it maintains a precise lock on every move.

Zone Tracking: Define up to 4 key areas (podium, whiteboard, demo table, etc.). The Astra P1 then tracks between them as the target moves to provide a smooth transition in large spaces. Ideal for large auditoriums where a single operator needs reliable, automatic coverage.
NDI® | HX3 Support
Pro Connectivity.
No Licenses Needed.
An NDI® | HX3 license is included with every Astra P1 — no extra cost. Just connect one Ethernet cable to stream near-lossless 4K video with ultra-low latency. The Astra P1 integrates into your NDI workflow, ready for vMix, OBS, or any professional broadcast studio.
Web Control
Every Setting in
One View
Open a browser tab on your computer for full access to your control panel. Pan, tilt, zoom, and manage every professional setting remotely.
Power of One
A single PoE+ cable delivers 4K video, audio, power, and control.
Broadcast-Grade I/O &
Protocol Support
The Astra P1 supports simultaneous output via HDMI 2.0, 3G-SDI, USB, and LAN. It delivers up to three independent HD streams and supports a full range of protocols, from standard VISCA/Pelco for control systems to USB UVC, IP-based streaming, and FreeD for AR/VR virtual production.
Any Workflow.
Every Stage.
Output independent main and sub streams to handle high-quality recording and low-latency monitoring at once. Whether in churches, halls, or live events, the Astra P1 is built to perform in any professional setup.
Logic Church
Lekki, Lagos, Nigeria
Good Shepherd Parish
Pampanga Province, Philippines
Universele Kerk van Gods Rijk
Netherlands
FAE Instant Support
5-Year Warranty
Every Astra P1 comes with a 5-year warranty. Our field application engineers are on standby to provide instant technical support. At Hollyland, your vision is our mission. We are committed to your long-term success.
Register Now
Astra P1
Professional Precision. Effortless Motion.
UHD 4K60
Face Detection AE
30x Optical
AI Auto Tracking
NDI®|HX3 Support
Ease of Use
Optional PTZ Controller
5-Year Warranty
Buy Now
Your Package List
PTZ Camera x 1
Remote Controller x 1
Power Adapter x 1
USB-B to USB-A Cable x 1
RS232 Cable x 1
Wall Mount Bracket x 1
Ceiling Mount Bracket x 1
Upgrade Your Setup.
More Accessories
Astra P1 PTZ Camera
Remote Controller
USB-B to USB-A Cable
RS232 Cable
Power Adapter
Specs
Camera
Image Sensor
1/1.8″ High-quality CMOS Sensor
Effective Pixels
8.42 Megapixels (16:9 aspect ratio)
Optical Zoom
30x Zoom (f = 7.1mm ~ 210mm)
Digital Zoom
16x
Video Format
HDMI:
2160p25/29.97/30/50/59.94/60
1080p29.97/30/50/59.94/60
1080i50/59.94/60
720p59.94/60

3G-SDI:
1080p25/29.97/30/50/59.94/60
1080i50/59.94/60
720p59.94/60
Aperture Range
F1.61 ~ F5.19
Field of View (H/V)
Horizontal: 59.2° ~ 2.5°
Vertical: 34.6° ~ 1.4°
Minimum Illumination
0.5 Lux (F1.8, AGC ON)
Shutter Speed
1/30s ~ 1/10000s
Signal-to-Noise Ratio (SNR)
≥55dB
PTZ Performance
Rotation Range
Pan: ±170°
Tilt: -30° ~ +90°
Rotation Speed
Pan: 1.7°/s ~ 100°/s
Tilt: 1.7°/s ~ 69.9°/s
Preset Positions
255 Positions (Accuracy: 0.1°)
I/O Interface
Audio
1 × 3.5mm LINE IN
1 × 3.5mm LINE OUT
Communication
1 × RS485 (2-pin Phoenix Terminal)
1 × RS232 IN (8-pin Mini-DIN)
Network
1 × RJ45 10M/100M/1000M Adaptive Ethernet
USB
1 × USB 2.0 Type-A
1 × USB 3.0 Type-B
Video
1 × 3G-SDI
1 × HDMI 2.0
Power
DC 12V (JEITA Type)
Network Features
Video Compression
H.264 / H.265 / MJPEG
Video Streams
Main Stream (First Stream), Sub Stream (Second Stream)
Main Stream Resolution
3840×2160, 1920×1080, 1280×720, 1024×576, 720×480, 720×408, 640×480, 640×360
Sub Stream Resolution
720×480, 720×408, 640×480, 640×360, 480×320, 320×240
Supported Protocols
NDI®|HX3, TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc.
General Specifications
Input Voltage
DC 12V/PoE+
Input Current
2A (max.)
Power Consumption
18W (max.)
Operating Temperature
32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature
-40°F ~ 140°F (-40°C ~ 60°C)
Dimensions
(L×W×H): 169×188×226mm
Net Weight
Approx. 2.3kg
Lekki, Lagos, Nigeria
Upgrade Your Church Production
Logic Church
Logic Church is an 800-seat modern church in Lagos, Nigeria. Founded in 2019 and growing fast, it runs high-energy services with a lead pastor, praise team, choir, and live band. Every service is broadcast to both in-venue screens and online audiences — a production scale that calls for reliable multi-angle coverage. A dedicated crew of staff and volunteers operates three Astra P1 cameras to capture it all.
Multi-Level Camera Coverage
Cam 1: 100 ft / 30 m, tripod — Master shot
Cam 2: overhead mount — Top-down stage coverage
Cam 3: 165 ft / 50 m, gallery 45° — High-angle wide & close-ups

Three heights. Three perspectives. One cinematic experience.
Cam 1
Cam 2
Cam 3
Production
Highlights
Three Cinematic Angles
Master, overhead, and gallery — dynamic coverage for every worship moment.

AI Tracking Under Stage Lights
Presenter Tracking rarely loses the target, even under dynamic spotlights.

Broadcast-Ready 4K
True-to-life color and clarity across 30–50m throw distances.

Streamlined Single-Cable Deployment
NDI®|HX3 + PoE+ — cleaner racks, faster setup.
Seamless Integration
The Astra P1 runs power, video, and control through a single Ethernet cable per camera. It works with industry-standard switchers and streaming software like OBS and vMix, and supports dual output for in-venue screens and online streams at the same time, no extra hardware needed.
Pampanga Province, Philippines
Upgrade Your Church Production
Good Shepherd Parish
Good Shepherd Parish is a 600-seat Catholic church in Pampanga, Philippines, where solemn Mass is led by a parish priest alongside readers and a commentator. A 15-member volunteer team captures every service for the congregation both inside and beyond the sanctuary — a setup that must never interrupt the reverence of the liturgy.
Multi-Level Camera Coverage
Cam 1: 15 ft / 4.5 m, inverted — Stage & congregation
Cam 2: 15 ft / 4.5 m, inverted — Entrance & speaker
Cam 3: 60 ft / 18 m, outdoor pole — Exterior
Cam 1
Cam 2
Cam 3
Traditional Multi-Cam
Setup vs. Astra P1
Traditional Multi-Cam
Separate video and
power cables per camera
Limited to one
brand’s ecosystem
One operator per
PTZ camera
Astra P1
One Ethernet cable
— NDI®|HX3 + PoE+
Works with Blackmagic, OBS,
and more — out of the box
AI tracking lets one person
run several PTZ cameras
From the
Production Team
Non-Intrusive Multi-Angle
“I can get multiple angles without being intrusive.”
Image Quality
“Image quality is amazing.”
NDI Integration
“The integration of NDI makes everything smooth and fail-safe.”
Volunteer-Friendly
“New operators ready in half a day.”
Netherlands
Upgrade Your Church Production
Universele Kerk van Gods Rijk
The Universele Kerk van Gods Rijk is a church with around 300 attendees. Services are led by a single bishop or pastor, supported by a small production team. With multi-angle, multi-camera live streaming, remote audiences can join and engage in real time.
Multi-Level Camera Coverage
Cam 1: 10 ft / 3 m, center — Main stage
Cam 2: 30 ft / 9 m, left — Left-side coverage
Cam 3: 30 ft / 9 m, right — Right-side coverage

Clean, simple setup. A neat and organized workspace.
Cam 1
Cam 2
Cam 3
Before and After
Before
From one operator
per camera
From fixed angles only
Messy cables everywhere
After
To one operator running
several cameras
To AI tracking with full-stage
coverage
Clean, plug-and-play setup
Real Production
Experience
Professional Image Quality
“We have had a very positive experience using the PTZ camera in real live environments such as church services and events. The image quality is excellent and delivers a professional, cinematic look.”
Easy Workflow
“Reduced headcount while increasing production value — one person can now do the work of many.”
Fast Learning Curve
“New volunteers can operate the Astra P1 in under 30 minutes.”
More Engaging Streams
“A significant boost in stream quality, a cleaner workspace, and better audience engagement.”
Flexible
Integration
Fully supports NDI®|HX3, VISCA, Pelco, and more. Seamlessly integrates with existing and future production systems.
Compatible Systems
Astra P1 PTZ Camera
Smooth multi-angle coverage with reliable AI tracking for live services.
Compatible Systems
Works seamlessly with switchers like TriCaster, Blackmagic ATEM, and streaming software such as vMix and OBS.
